New Railway Plant

Our Products & Variants
  • Linke Hofmann Busch popularly known as LHB Coaches,
  • Electric Multiple Unit or EMU Coaches
  • Metro Coaches
  • Complete Electric Loco Shell Assembly
Value Proposition
  • Can offer metro quality paint- less coach shells
  • Can offer sub assemblies for shell items
  • Can offer furnishing items for the metro coaches
Our Capacity Planed
  • Total 3 manufacturing bay of 25 meter wide x 200 meter long.
  • Side Wall & Roof – 600 coach sets per annum.
  • Underframe – 450 Nos per annum.
  • Complete Electric Loco Shell – 100 Nos per annum.

Major Equipments

4 KW CNC Laser Welding & Cutting
MODEL JKH2522
SHEET METAL THK SIZE 0.8MM TO 3MM
TYPE OF LEASER SOURCE FIBRE
LASER SOURCE IPG
LASER SOURCE POWER 4000 WATT
LASER SOURCE MODEL IPG YLS4000
MACHINE CAPACITY WELDING SHEET METAL THK 0.8MM TO 3MM AND WIDTH UP TO 3000 MM
MACHINE CAPACITY CUTTING 18 MM MS & 12 MM SS, LENGTH 22 METER X WIDTH 3 METER
CONTROLLER SIEMENS 840DSL
LASER HEAD (CUTTING) PRECITEC PROCUTTER FW150
LASER HEAD (WELDING) PRECITEC YW52
Section Rolling Machine
CNC Robotic Spot Welding
MACHIE TYPE GANTRY
MACHINE SIZE (LENGTH * WIDTH ) 65m x 9m
NO OF ROBOTS 1
AXIS OF ROBOT 6
SPEED OF ROBOT
AXIS STROKE SPEED
1 X Linear 60 m 30 m/min
2 Y Linear 5.600 mm 30 m/min
3 Z Linear 1.750 mm 20 m/min
4 A Angular 540° 85,7 °/sec.
5 B Angular 360° 85,7 °/sec.
6 C Angular 540° 85,7 °/sec.
NO OF STATION 2 (1 COPPER BED & 1 FRAME WITH C GUN)
CYCLE TIME / SPOT 2.5 SEC/SPOT WITH SINGLE ELECTRODE GUN 5.5 SEC/SPOT WITH "C" GUN
WELDABLE THICKNESS MIN. 0.5 + 0.5mm & MAX 4 + 4 mm
ARGON SHIELDING YES
DRIVING MOTOR SIEMENS
WELDING CONTROLLER (MAKE & MODEL) BOSCH WELDING CONTROL MODEL - INVERTER PSI 6200- 100W
NC CONTROLLER SIEMENS 840 SL
PLC MAKE SIEMENS S.7
TRANSFORMER CAPACITY 320 KVA

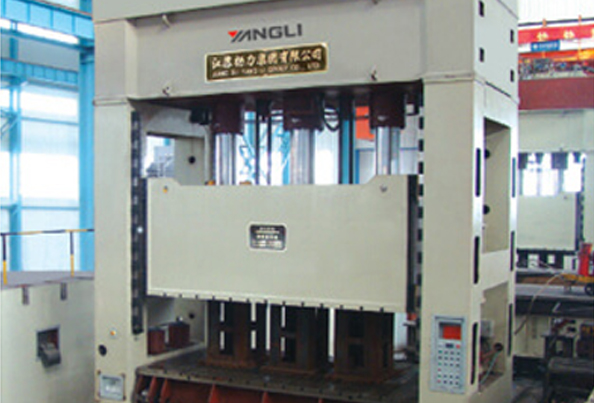

HYDRAULIC PRESS WITH AUTOMATION
Press Tonnage 400 Ton
Bed Size 3000 x 1500 mm
Cushion Size 2170 x 970 mm
Stroke 300
Force 100
Moving Bolster Centre to Left
Shut Ht (Min.) 400
Shut Ht (Max.) 800
Day Light (Max.) 1200
Forming Depth 300
High Definition PLASMA Cutting
Power Source 260 Amps, High Definition
Material to Cut Mild steel & Stainless Steel
Cutting capacity MS 32 / 65 (mm)
SS 25 / 50 (mm)
Effective cutting width 3500 mm
Effective cutting length 12000 mm
Centre point marking for drilling YES
Type of cutting Dry Cutting
No. of cutting torches 2 (1 Bevel + 1 Oxy Fuel)
Torch height control Automatic
3KW CNC LASER CUTTING
MODEL DF4022
SHEET METAL TABLE SIZE 4000MM X 2200MM
SHEET METAL THK (MAX) 18 MM MS, 12 MM SS, 8MM ALUMINUM
TYPES OF LEASER SOURCES FIBRE LASER
LASER SOURCE IPG
LASER SOURCE POWER 3000 WATTS
LASER SOURCE MODEL IPG YLS3000
CONTROLLER SIEMENS 840DSL
LASER HEAD PRECITEC PROCUTTER
POSITION ACCURACY (X AND Y AXIS) 0.05MM
REPOSITION ACCURACY (X AND Y AXIS) 0.025MM
SHEARING MACHINE, HACO
MODEL HSL-3016
Working Length 3050 mm
Capacity Mild Steel 16 mm ( 400 N/Sq.mm)
Min Cutting Angle 0.5 Degree
Max Cutting Angle 3 Degree
Working Height 1000 mm
Std. Holddown 3000 mm , 16 mm
Back Guage Motorized up to 1000 mm
Blade Material INOX foHardox Material
Motor Power 30 KW
PRESS BRAKE , DURMAZLAR , TURKEY
MODEL ADR- 40400
Tonnage 400 T
Machine CNC SYNCRO PRESS BRAKE
Movement Y1, Y2 , X=750 MM, R Axis included
Throat Depth 510 mm
Stroke 365 mm
Daylight 630 mm
Thickness Up to 10 mm
Control Unit Delem DA 66T
Motor Power 30 KW
E-LOCO SHELL /UNDERFRAME
MODEL UNICRANE
Capacity Up to 70 T
Type Submerged Type
Span 17600 mm
Total Length 226
Job ( LXWXH) 23.5 Mtr x 3.25 Mtr x 4.3 Mtr
Haulage Speed 20-25 M/Min
Class of Duty M-6 with VVFD Drive
